About KJ520 Broom

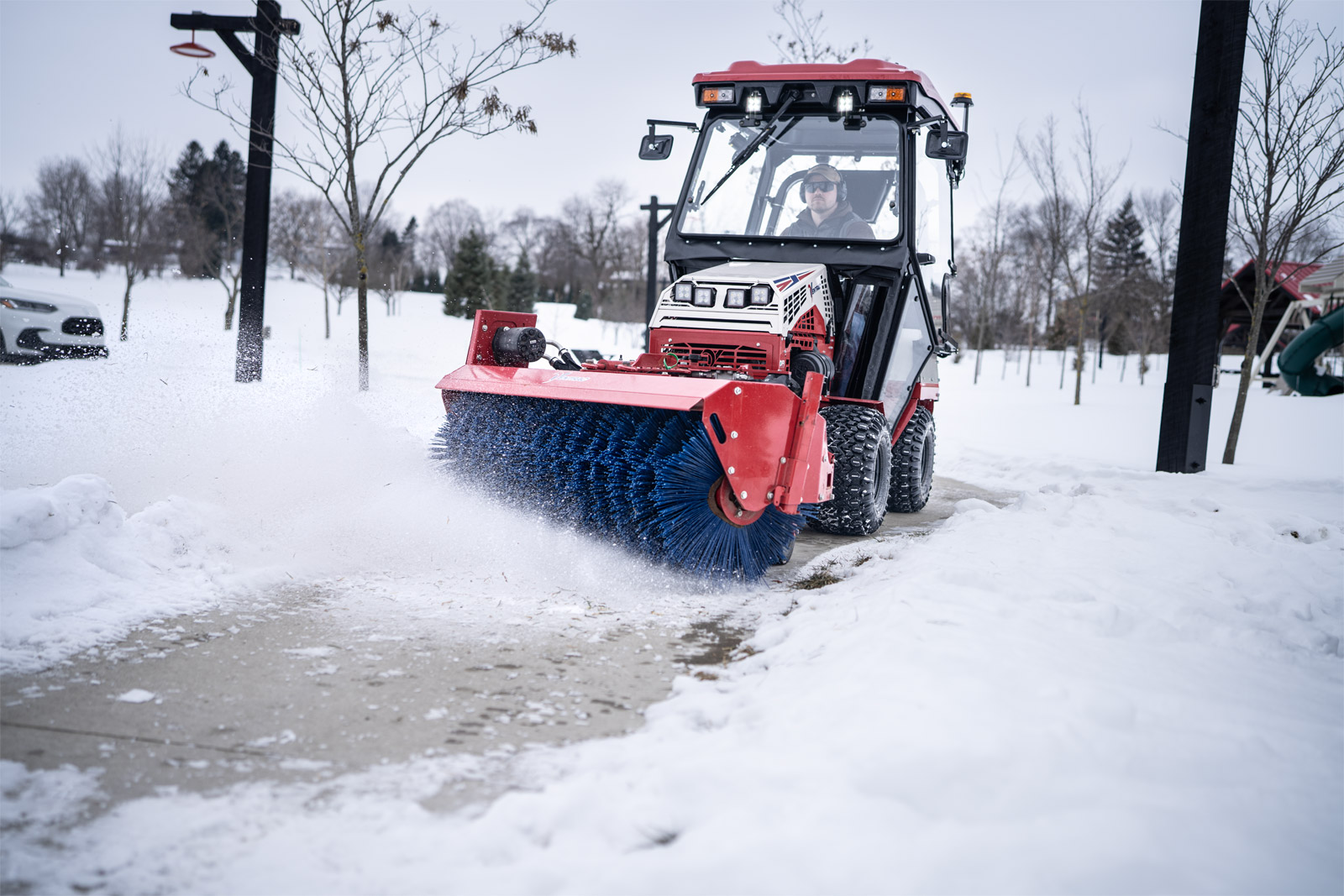

The KJ520 Narrow Broom is designed for sweeping and removal of material such as snow, leaves, dirt, light gravel, and even thatch. It is designed to fit narrow walkways, operational on a 48in walk.
The KJ520 Broom can be hydraulically angled left or right and lifted up or down all with the S.D.L.A. Controls.
An optional electric actuator allows the operator to adjust the speed and direction of the broom rotation, maximizing effectiveness and allowing the operator to reverse broom rotation, all from the seat of the tractor.
Simple Start
KJ520 Broom
Join Aaron as he guides you through attachment operation with helpful tips for real-world use.
View All Simple Start Videos
Base Specifications
Info
Dimensions
Working Width
52 in
Length
58 in
Overall Width
61 in
Height
321⁄2 in
General
Rotation
Forward/Reverse
Broom Diameter
24 in
Angled Working Width
48 in
Max Angle (Left/Right)
30 °
Accessories for KJ520 Broom
Videos
Sweeping Gravel Out of Grass | Spring Clean Up
Let's make life easier, not harder. When you've got the right tool for the job, no hand labor is involved. Ventrac's Power Broom sweeps the gravel back where it belongs in your driveway.
Learn More
Simple Start - Narrow Broom
The Ventrac Sidewalk Snow Broom is perfectly sized for sidewalk snow removal on walkways, parking lot paths, and entryways with a 48-inch angled working width. The physical footprint of this broom is designed to perfectly pair with the tractor, making limited operating space no longer an issue.
Learn MoreDownloads for KJ520 Broom
V-Plus Warranty:
Commercial: 2 year*
